Description
Cross Ref.
| Manufacturer Name | Manufacturer Part # | Notes |
|---|---|---|
| LOESING | 22167 | |
| SCANIA | 1879436 |

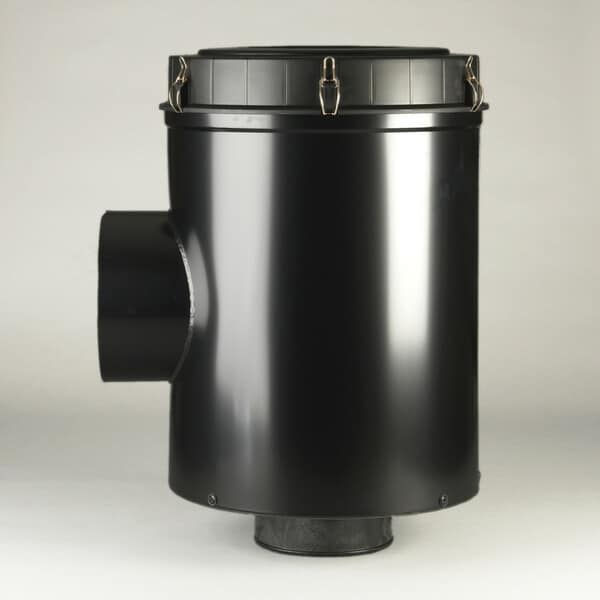

B180017 AIR CLEANER ERB
€700.93
Attributes
| Outlet Diameter | 203 mm (7.99 inch) |
| Inlet Diameter | 254 mm (10.00 inch) |
| Body Diameter Maximum | 457 mm (17.99 inch) |
| Overall Length | 735 mm (28.94 inch) |
| Length | 651 mm (25.63 inch) |
| Body Length | 650 mm (25.59 inch) |
| Inlet Length | 328 mm (12.91 inch) |
| Outlet Length | 85 mm (3.35 inch) |
| Service Clearance | 600 mm (23.62 inch) |
| Rated Flow LR | 65 m³/min (2295 cfm) |
| Rated Flow MR | 74 m³/min (2613 cfm) |
| Rated Flow HR | 83 m³/min (2931 cfm) |
| Family | ERB |
| Inlet Location | 279 mm (10.98 inch) |
Additional information
| Weight | 18 kg |
|---|
