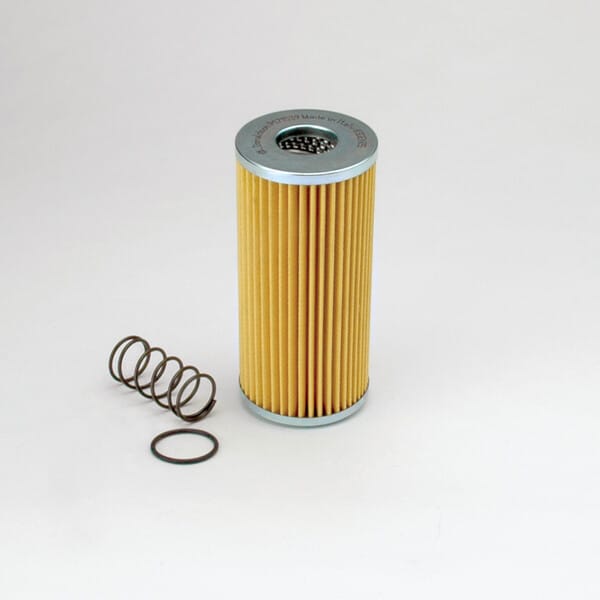

P171539 HYDRAULIC FILTER, CARTRIDGE
€19.15
Attributes
| Outer Diameter | 95 mm (3.74 inch) |
| Inner Diameter | 41 mm (1.61 inch) |
| Length | 202 mm (7.95 inch) |
| Gasket OD | 46.6 mm (1.83 inch) |
| Gasket ID | 39.6 mm (1.56 inch) |
| Overall Length | 209 mm (8.23 inch) |
| Efficiency Beta 2 | 10 micron |
| Efficiency Beta 200 | 32 micron |
| Efficiency Beta 1000 | 36 micron |
| Efficiency Test Std | ISO 16889 |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1.5 bar (22 psi) |
| Collapse Burst | 10 bar (145 psi) |
| Flow Direction | Outside-In |
| Maximum Operating Temperature | 120 °C (248 °F) |
| Style | Cartridge |
| Series | FIK |
| Media Type | Cellulose |
| Price Type | FH |
| Primary Application | F.B.O. CR180 |
